- ADD NVME STORAGE USING AN A/E SLOT: Convert an available PCIe-capable M.2 Key A or Key E wireless slot for use with one M-Key NVMe SSD. Useful when standard M-Key storage slots are full, unavailable, or inaccessible
- SUPPORTS COMMON SSD LENGTHS: Mount 2230, 2242, 2260, or 2280 M.2 NVMe SSDs using the corresponding board position. Intended for PCIe-based M-Key NVMe drives only, not SATA-based B-Key or B+M SATA SSDs
- PCIe x1 HOST LINK: The adapter uses the PCIe lane available through the A/E host slot. Installed SSD performance is therefore limited by the host interface and will not match the full x4 bandwidth of a native M-Key NVMe slot
- HOST SLOT REQUIREMENTS: Physical Key A/E fit alone does not guarantee operation. The motherboard slot must provide standard PCIe signaling and firmware support. Not intended for proprietary CNVio-only wireless interfaces
- SIMPLE INTERNAL INSTALLATION: No adapter-specific driver or separate power connection is required. Includes the adapter, riser spacer, and securing screw. New SSDs may require initialization or formatting after installation

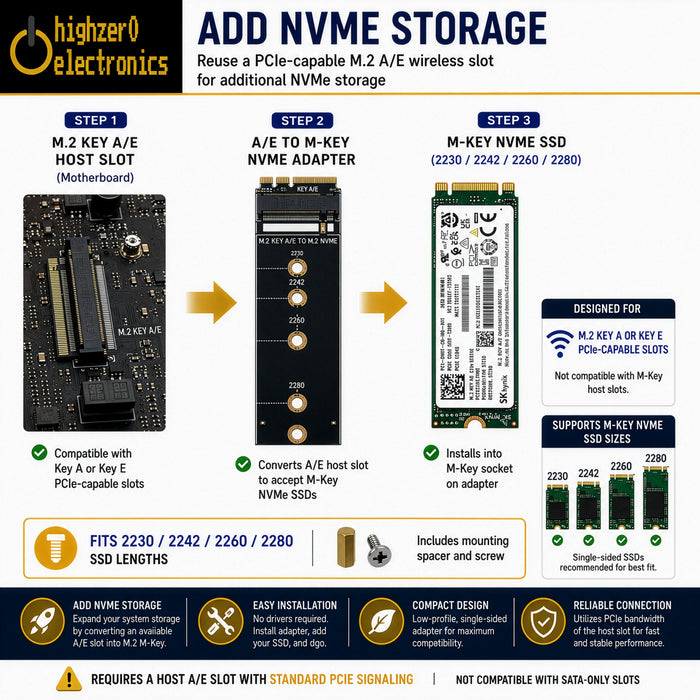

ADD NVME STORAGE THROUGH AN M.2 A/E SLOT

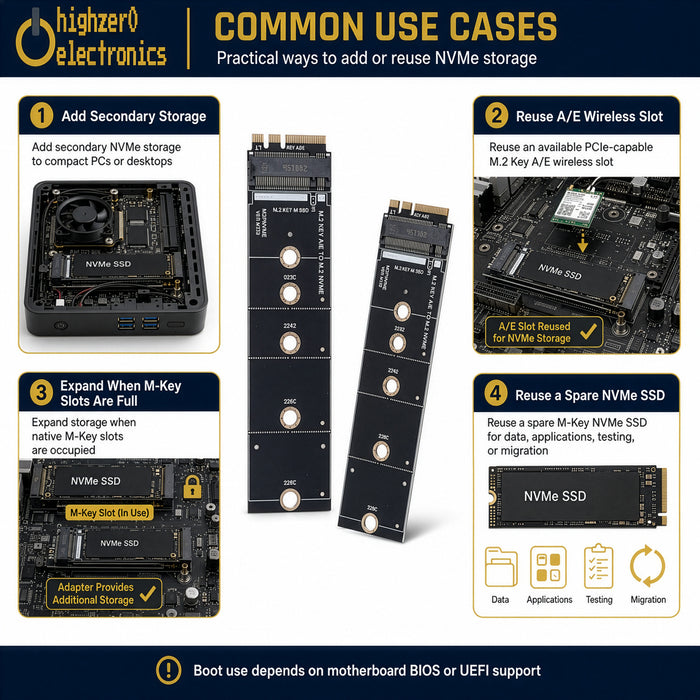

This internal adapter converts a PCIe-capable M.2 Key A or Key E host slot for use with one M-Key NVMe SSD. It is intended for systems where a wireless-card slot is available and additional NVMe storage is needed, including compact PCs and other builds with limited native M-Key storage positions.

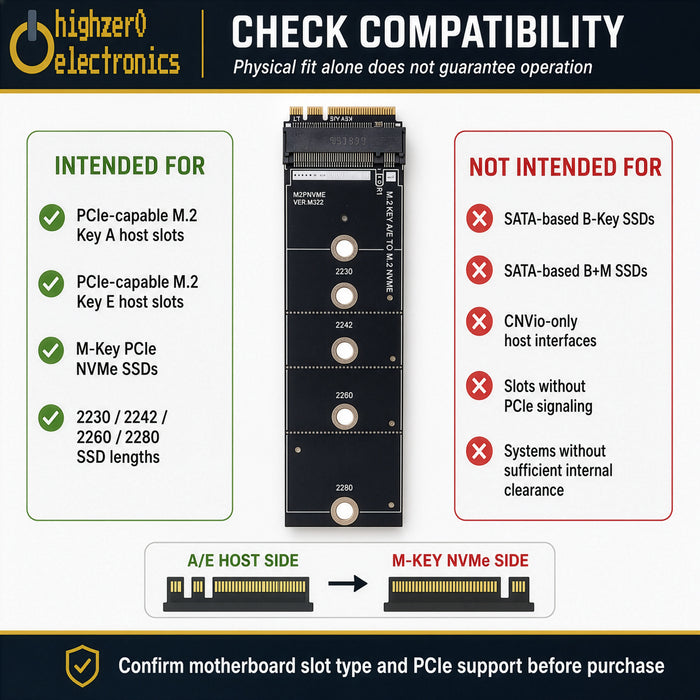

CHECK THE HOST INTERFACE BEFORE INSTALLING
The M.2 key shape determines physical fit, but fit alone does not guarantee operation. The host A/E slot must provide standard PCIe signaling and the system firmware must support the installed NVMe device. Not intended for proprietary CNVio-only wireless interfaces. Installing the adapter also occupies that wireless-card slot.

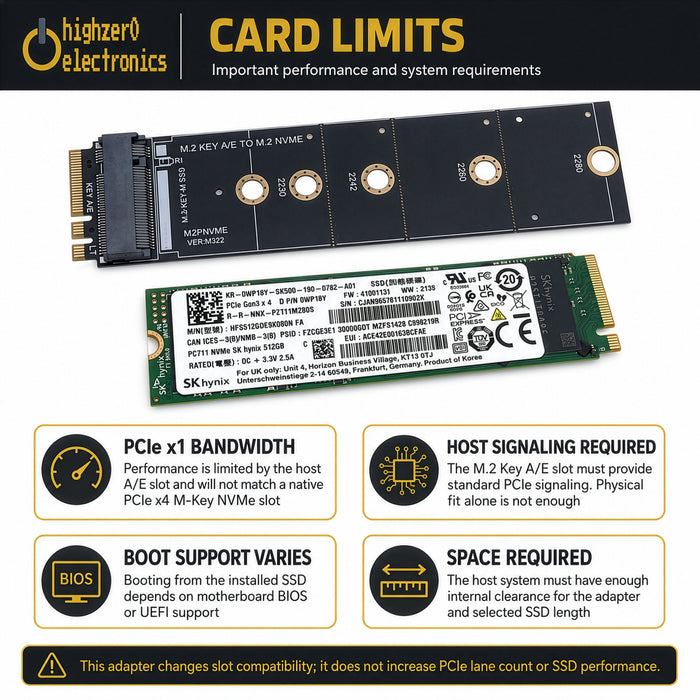

NVME ONLY WITH PCIe x1 HOST BANDWIDTH
Use with PCIe-based M-Key NVMe SSDs in 2230, 2242, 2260, or 2280 lengths. The adapter does not convert SATA signaling and is not intended for SATA-based B-Key or B+M SATA SSDs. Performance is limited by the PCIe lane available from the host A/E slot and will not match the full x4 bandwidth of a native M-Key NVMe socket.

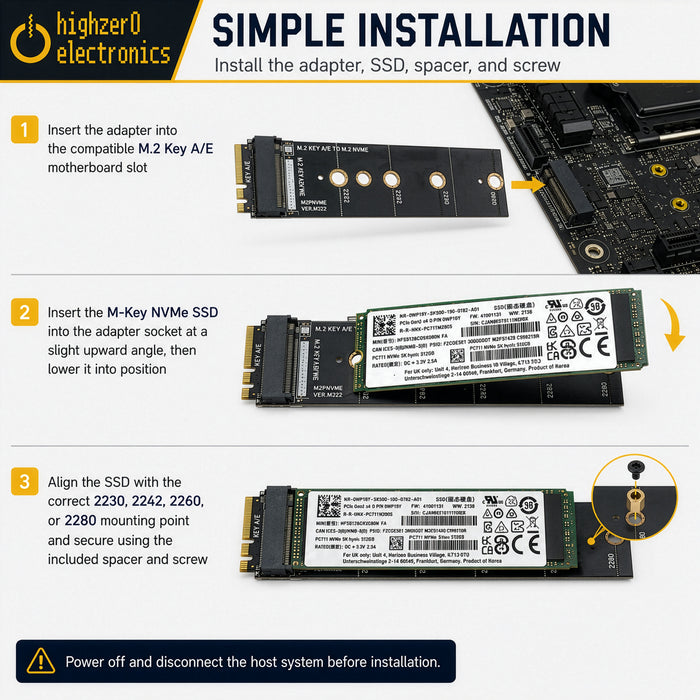

INSTALLATION AND STORAGE SETUP
No adapter-specific driver or separate power cable is required. Install the adapter in the compatible host slot, insert the NVMe SSD into the M-Key socket, secure the hardware, and restart the system. A new SSD may need initialization, partitioning, and formatting before use. Booting from the installed SSD depends on motherboard BIOS or UEFI support.

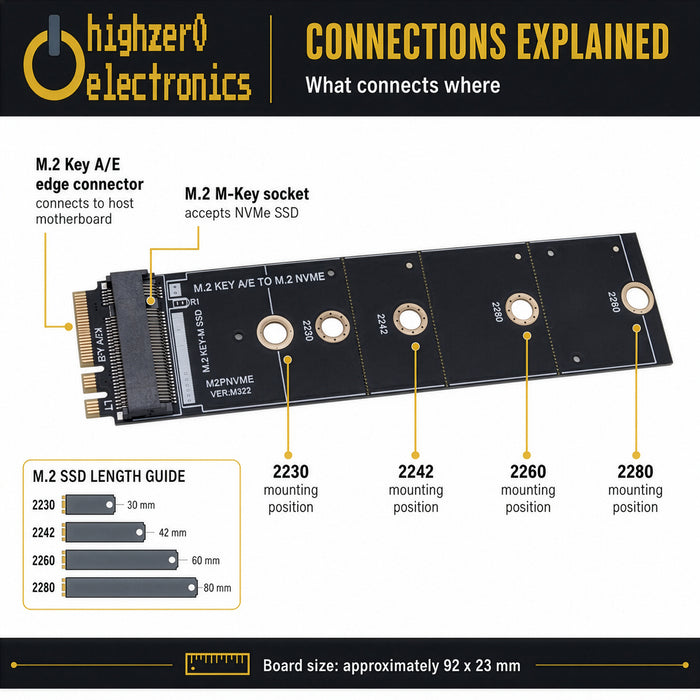

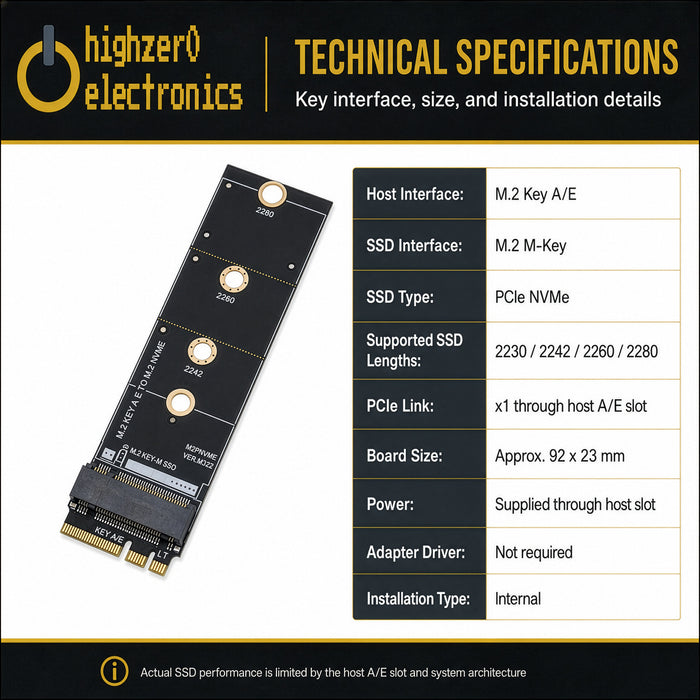

TECHNICAL DETAILS
Host connector: M.2 Key A/E
SSD socket: M.2 M-Key
Supported SSD lengths: 2230, 2242, 2260, 2280
Board size: approximately 92 x 23 mm

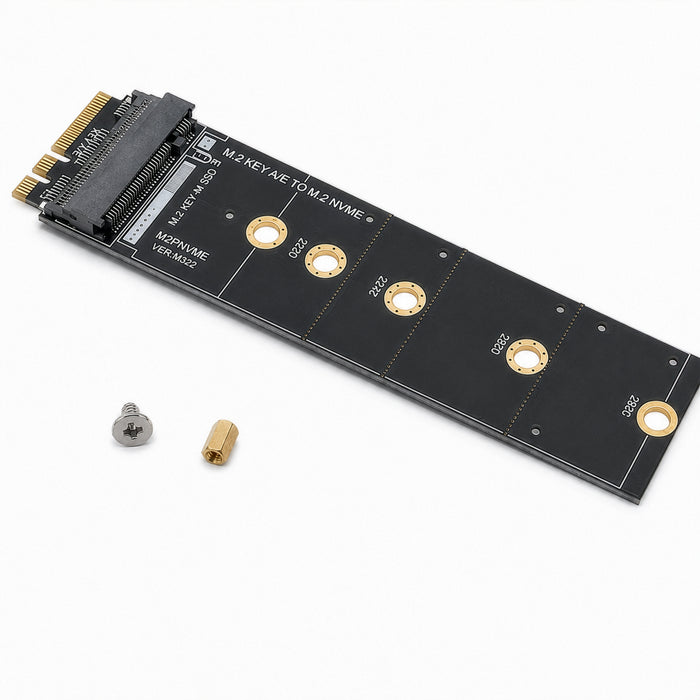

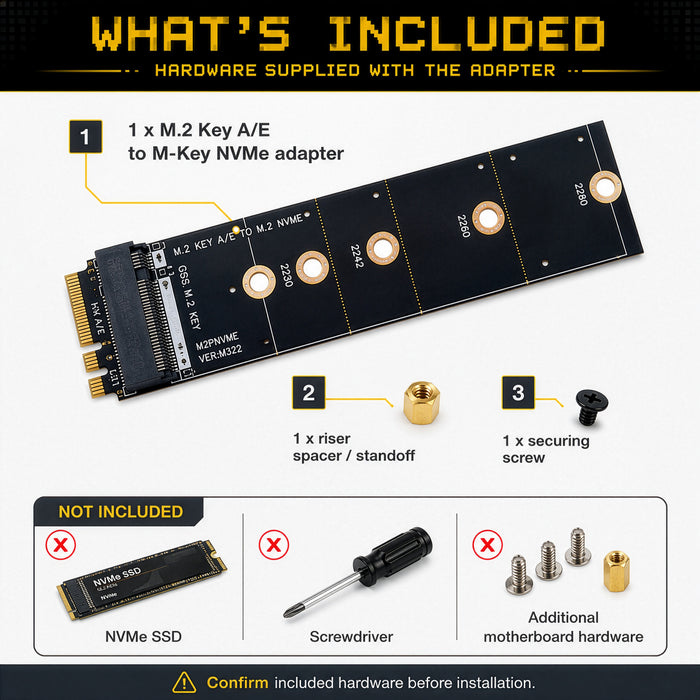

What’s included: 1 x adapter card, 1 x riser spacer, 1 x securing screw
SSD IS NOT INCLUDED
